Optogenetics Equiment

Discover the power of light in neuroscience

Optogenetics products catalog include SINGLE and MULTI wavelength fiber coupled high power LED light sources.

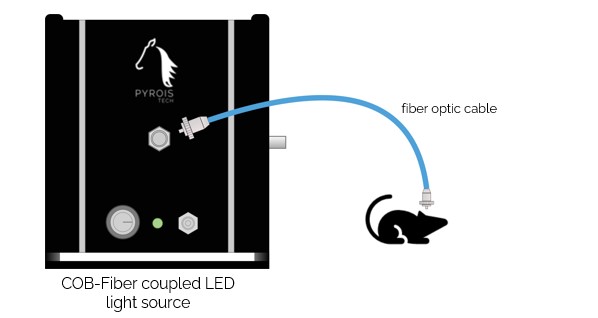

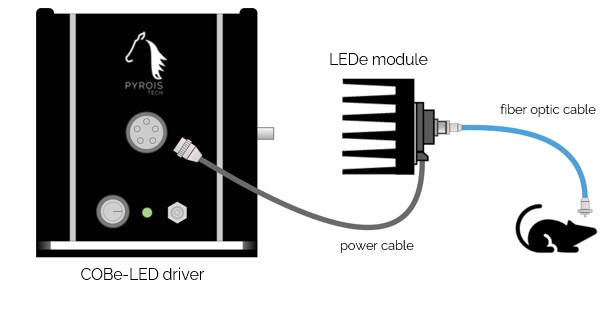

Schematic setup

Enhace your experimental configurations with our products:

Pyroistech products are compatible for direct integration into optogenetics experimental setups at your laboratory.

With unique features that include but are not limited to:

High-power Leds at multiple wavelenghts
Stable optical output power
High efficiency
External and internal modulation (TTL pulsed mode).
Configurable optical fiber output connectors (SMA/FC) for operation with standard optogenetics instrumentation

Possibility to combine several LEDs into a single fiber

Don´t hesitate to check out our products:

Ideal wavelenghts for optogenetics

Reference

λ (nm)

Power (mW)*

VF (V)

Max IF (A)

Reference

LED-385

λ (nm)

385

Power (mW)*

10.6

VF (V)

3.50

Max IF (A)

1.00

Reference

LED-395

λ (nm)

395

Power (mW)*

11.0

VF (V)

3.50

Max IF (A)

1.00

Reference

LED-405

λ (nm)

405

Power (mW)*

11.4

VF (V)

3.50

Max IF (A)

1.00

Reference

LED-430

λ (nm)

430

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LED-457

λ (nm)

457

Power (mW)*

13.2

VF (V)

3.50

Max IF (A)

1.50

Reference

LED-460

λ (nm)

460

Power (mW)*

10.7

VF (V)

3.70

Max IF (A)

1.20

Reference

LED-523

λ (nm)

523

Power (mW)*

4.8

VF (V)

3.95

Max IF (A)

1.50

Reference

LED-590

λ (nm)

590

Power (mW)*

2.0

VF (V)

2.70

Max IF (A)

1.20

Reference

LED-623

λ (nm)

623

Power (mW)*

10.3

VF (V)

3.00

Max IF (A)

1.50

Reference

LED-660

λ (nm)

660

Power (mW)*

10.6

VF (V)

2.70

Max IF (A)

1.20

* Measured with a 600 μm diameter fiber and 0.22 NA.

** Measured with a VIS-NIR fiber with a diameter of 1000 μm and 0.5 NA

Don´t you find what you are looking for?

If you are looking for a fiber coupled LED light source or LEDe module with another wavelength or other power requirements, even if it is not among our products, do not hesitate to contact us.

We will do our best to find a solution that suits your needs.
