BRETON – MultiLED Light Source

Fiber-coupled MultiLED Light Source

BRETON Fiber coupled MultiLED light source
Play Video

BRETON

Fiber-coupled MultiLED Light Source

BRETON is a broadband multiLED light source with different peak wavelengths in the UV-VIS-NIR range. The current through each LED can be controlled with 1% precision through a touch screen or a USB connection to the computer.

Request more information
Ask us for a quote

Characteristics

  • Several peak wavelengths in the 400 - 800 nm range
  • Fast stabilization time (1 min)
  • 1% precision current control through touch screen or USB
  • SMA output connector
  • Stable throughout the working spectral range
  • Compact size (15.2 x 15.2 x 13.5 cm)
  • Ventilation system: fan
  • Quality materials for a long life

BRETON has been conceived by Pyroistech as a user-friendly and compact tool, being ideal for fluorescence, spectroscopy and general fiber illumination applications.

MODELS

  • BRETON 12 : 12 LEDs with 6 peak wavelengths (violet, blue, green, amber, deep red, far red)
  • BRETON 7: 7 LEDs with 6 peak wavelengths (red, green, blue, amber, cyan, lime)
  • BRETON 4: 12 LEDs with 4 peak wavelengths (red, green, blue, white)
User manual
Datasheet Model BRETON 12

AT THE FOREFRONT OF INNOVATION

MULTILED SOURCE

Ideal for fluorescence, spectroscopy and general fiber illumination applications.

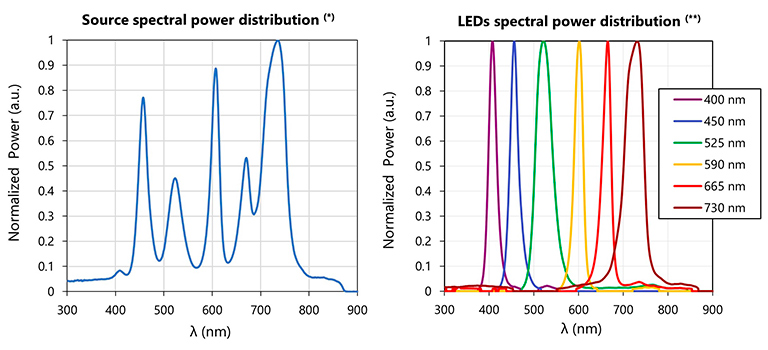

Spectra model Breton 12

MultiLED light source, spectra BRETON 12

Characteristics LEDs model Breton 12

Reference

λ (nm)

Nº of LEDs

Power (mW)
Ø 1 mm, NA 0.5

Power (mW)
Ø 1.5 mm, NA 0.5

Reference

REF

λ (nm)

400

Nº of LEDs

1

Power (mW)
Ø 1 mm, NA 0.5

1.25

Power (mW)
Ø 1.5 mm, NA 0.5

3.47

Reference

REF

λ (nm)

450

Nº of LEDs

3

Power (mW)
Ø 1 mm, NA 0.5

8.49

Power (mW)
Ø 1.5 mm, NA 0.5

22.15

Reference

REF

λ (nm)

525

Nº of LEDs

1

Power (mW)
Ø 1 mm, NA 0.5

2.10

Power (mW)
Ø 1.5 mm, NA 0.5

4.27

Reference

REF

λ (nm)

590

Nº of LEDs

1

Power (mW)
Ø 1 mm, NA 0.5

1.99

Power (mW)
Ø 1.5 mm, NA 0.5

4.85

Reference

REF

λ (nm)

665

Nº of LEDs

4

Power (mW)
Ø 1 mm, NA 0.5

6.50

Power (mW)
Ø 1.5 mm, NA 0.5

18.68

Reference

REF

λ (nm)

730

Nº of LEDs

2

Power (mW)
Ø 1 mm, NA 0.5

6.22

Power (mW)
Ø 1.5 mm, NA 0.5

13.89

* Normalised spectrum of the model BRETON 12 measured with all the LEDs at their maximum current using a CCD-based spectrometer.

** Normalised spectrum of the LEDs contained in the model BRETON 12.
