LED modules

 UV-VIS-NIR & White

Fiber coupled LEDs UV-VIS-NIR & White
Play Video

LEDM Modules

Fiber coupled LEDM modules are a good alternative if a complex control is not required. They have a configurable output connector (SMA / FC) specially designed to optimize the coupling to the optical fiber.

Request more information
Ask us for a quote

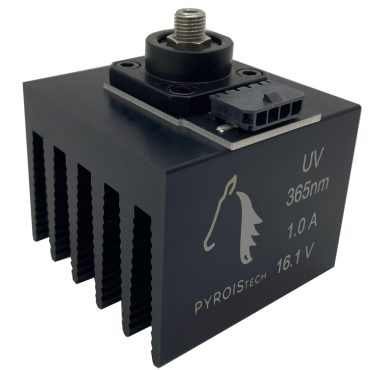

LEDe. Fiber coupled LED Modules.

LEDe Modules for COBe driver

LEDe modules can be used as standalone devices if you don’t require a complex control or with a COBe if you need a more advanced solution.

The thread also enables the coupling of different elements such as connectors (SMA or FC), diffusors or lens. They can be used for free space or optical fiber applications.

Request more information
Ask us for a quote

Characteristics of LEDM and LEDe modules

  • From 265 nm to 1650 nm. White & UV-VIS-NIR
  • Configurable output connector (SMA/FC)
  • Stable throughout the spectral range
  • Compact (5 x 5 x 5 cm)
  • Light weight and quiet (no fan required)
  • Quality materials for a long service life
  • Suitable for absorption, transmission, fluorescence or colorimetry measurements

The heatsink allows for quiet operation while providing effective heat dissipation. Do not hesitate to consult our LED sources if you need a more advanced solution.

Datasheet LED Module
DATASHEET LEDe MODULE

At the forefront of innovation

LEDM & LEDe MODULES

Specially designed to optimize

the fiber optic coupling

Fiber-coupled LED source. Ultraviolet (UV) models spectra.
Fiber-coupled LED source. Visible (VIS) models spectra
Fiber-coupled LED source, Infrared (IR) models spectra.

Reference

λ (nm)

Power (mW)*

VF (V)

Max IF (A)

Reference

LEDX-265

λ (nm)

265

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-270

λ (nm)

270

Power (mW)*

0.12

VF (V)

8.00

Max IF (A)

0.15

Reference

LEDX-280

λ (nm)

280

Power (mW)*

0.11

VF (V)

8.00

Max IF (A)

0.15

Reference

LEDX-300

λ (nm)

300

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-310

λ (nm)

310

Power (mW)*

0.50

VF (V)

6.00

Max IF (A)

0.60

Reference

LEDX-325

λ (nm)

325

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-340

λ (nm)

340

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-365

λ (nm)

365

Power (mW)*

11.8

VF (V)

3.80

Max IF (A)

1.00

Reference

LEDX-385

λ (nm)

385

Power (mW)*

10.6

VF (V)

3.50

Max IF (A)

1.00

Reference

LEDX-395

λ (nm)

395

Power (mW)*

11.0

VF (V)

3.50

Max IF (A)

1.00

Reference

LEDX-405

λ (nm)

405

Power (mW)*

11.4

VF (V)

3.50

Max IF (A)

1.00

Reference

λ (nm)

Power (mW)*

VF (V)

Max IF (A)

Reference

LEDX-430

λ (nm)

430

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-457

λ (nm)

457

Power (mW)*

13.2

VF (V)

3.50

Max IF (A)

1.50

Reference

LEDX-460

λ (nm)

460

Power (mW)*

10.7

VF (V)

3.70

Max IF (A)

1.20

Reference

LEDX-523

λ (nm)

523

Power (mW)*

4.8

VF (V)

3.95

Max IF (A)

1.50

Reference

LEDX-590

λ (nm)

590

Power (mW)*

2.0

VF (V)

2.70

Max IF (A)

1.20

Reference

LEDX-623

λ (nm)

623

Power (mW)*

10.3

VF (V)

3.00

Max IF (A)

1.50

Reference

LEDX-660

λ (nm)

660

Power (mW)*

10.6

VF (V)

2.70

Max IF (A)

1.20

Reference

LEDX-EX White

λ (nm)

-

Power (mW)*

0.75

VF (V)

3.00

Max IF (A)

0.50

Reference

LEDX-3000 White

λ (nm)

-

Power (mW)*

2.4

VF (V)

13.30

Max IF (A)

1.00

Reference

LEDX-6500 White

λ (nm)

-

Power (mW)*

16.5

VF (V)

3.25

Max IF (A)

1.20

Reference

λ (nm)

Power (mW)*

VF (V)

Max IF (A)

Reference

LEDX-740

λ (nm)

740

Power (mW)*

7.3

VF (V)

2.30

Max IF (A)

1.20

Reference

LEDX-840

λ (nm)

840

Power (mW)*

13.1

VF (V)

3.25

Max IF (A)

1.20

Reference

LEDX-940

λ (nm)

940

Power (mW)*

29.0

VF (V)

3.05

Max IF (A)

1.20

Reference

LEDX-1050

λ (nm)

1050

Power (mW)*

58.1**

VF (V)

1.60

Max IF (A)

1.00

Reference

LEDX-1100

λ (nm)

1100

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-1200

λ (nm)

1200

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-1300

λ (nm)

1300

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-1450

λ (nm)

1450

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-1550

λ (nm)

1550

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

Reference

LEDX-1650

λ (nm)

1650

Power (mW)*

TBD

VF (V)

TBD

Max IF (A)

TBD

* Measured with a 600 μm diameter fiber and 0.22 NA.

** Measured with a VIS-NIR fiber with a diameter of 1000 μm and 0.5 NA

The X is replaced by e or M, depending on the required model.

Don´t you find what you are looking for?

FIBER COUPLED LEDS

If you are looking for a LED module with another wavelength or other power requirements, even if it is not among our products, do not hesitate to contact us.



We will do our best to find a solution that suits your needs.
