LED Light Source

UV-VIS-NIR & WHITE LEDs

COB - Fiber coupled LED light source

The indispensable fiber optic LED light source in any university, laboratory, research center or R&D department. COB has been designed and conceived by Pyroistech for day-to-day work. It is a silent, compact LED light source with a design that will not go unnoticed.

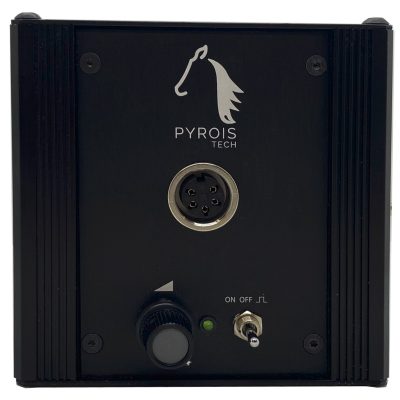

COBe - LED driver for LEDe modules

COBe LED driver increases the versatility of your optical setup as different LEDe modules can be connected to the same driver and the LEDe module can be positioned at any place.

COBe LED driver permits to adjust the power delivered to the LED manually or via external PWM signal with great stability and robust design. COBe is the indispensable LED driver for applications in chemistry and biology.

CharacteristicS

From 265 nm to 1650 nm. White & UV-VIS-NIR.
Operation in continuous or pulsed mode.
Adjustable power in both modes.
SMA or FC fiber optic output connector.
Stable throughout the spectral range.
Compact (10.5 x 11.5 x 8cm) and light.
Silent (does not need a fan).
With quality materials for a long duration.
Ideal for fluorescence, absorption, transmission or colorimetry measurements.

COB & COBe have been optimized to maximize the power coupled to the fiber and offer a wide range of configuration possibilities, being suitable for fluorescence, absorption, transmission or colorimetry measurements and with applications in education, engineering, chemistry or biology.

COB

COBe

At the forefront of innovation

COB MODELS

LED light source, ideal for measurements of fluorescence, absorption,

transmission or colorimetry.

Reference

λ (nm)

Power (mW)*

FWHM (nm)

Reference

COB-265

λ (nm)

265

Power (mW)*

TBD

FWHM (nm)

Reference

COB-270

λ (nm)

270

Power (mW)*

0.12

FWHM (nm)

Reference

COB-280

λ (nm)

280

Power (mW)*

0.11

FWHM (nm)

Reference

COB-300

λ (nm)

300

Power (mW)*

TBD

FWHM (nm)

Reference

COB-310

λ (nm)

310

Power (mW)*

0.50

FWHM (nm)

Reference

COB-325

λ (nm)

325

Power (mW)*

TBD

FWHM (nm)

Reference

COB-340

λ (nm)

340

Power (mW)*

TBD

FWHM (nm)

Reference

COB-365

λ (nm)

365

Potencia (mW)*

11.8

Power (mW)*

Reference

COB-385

λ (nm)

385

Power (mW)*

10.6

FWHM (nm)

12.5

Reference

COB-395

λ (nm)

395

Power (mW)*

FWHM (nm)

Reference

COB-405

λ (nm)

405

Power (mW)*

11.4

FWHM (nm)

Reference

λ (nm)

Power (mW)*

FWHM (nm)

Reference

COB-430

λ (nm)

430

Power (mW)*

TBD

FWHM (nm)

Reference

COB-457

λ (nm)

457

Power (mW)*

13.2

FWHM (nm)

Reference

COB-460

λ (nm)

460

Power (mW)*

10.7

FWHM (nm)

Reference

COB-523

λ (nm)

523

Power (mW)*

4.8

FWHM (nm)

Reference

COB-590

λ (nm)

590

Power (mW)*

2.0

FWHM (nm)

Reference

COB-623

λ (nm)

623

Power (mW)*

10.3

FWHM (nm)

Reference

COB-660

λ (nm)

660

Power (mW)*

10.6

FWHM (nm)

Reference

COB-EX White

λ (nm)

Power (mW)*

0.75

FWHM (nm)

Reference

COB-3000 White

λ (nm)

Power (mW)*

2.4

FWHM (nm)

Reference

COB-6500 White

λ (nm)

Power (mW)*

16.5

FWHM (nm)

Reference

λ (nm)

Power (mW)*

FWHM (nm)

Reference

COB-740

λ (nm)

740

Power (mW)*

7.3

FWHM (nm)

Reference

COB-840

λ (nm)

840

Power (mW)*

13.1

FWHM (nm)

Reference

COB-940

λ (nm)

940

Power (mW)*

29.0

FWHM (nm)

Reference

COB-1050

λ (nm)

1050

Power (mW)*

58.1**

FWHM (nm)

Reference

COB-1100

λ (nm)

1100

Power (mW)*

TBD

FWHM (nm)

Reference

COB-1200

λ (nm)

1200

Power (mW)*

TBD

FWHM (nm)

Reference

COB-1300

λ (nm)

1300

Power (mW)*

TBD

FWHM (nm)

Reference

COB-1450

λ (nm)

1450

Power (mW)*

TBD

FWHM (nm)

Reference

COB-1550

λ (nm)

1550

Power (mW)*

TBD

FWHM (nm)

102

Reference

COB-1650

λ (nm)

1650

Power (mW)*

TBD

FWHM (nm)

120

* Measured with an optical fiber with a core diameter of 600 μm and 0.22 NA.

** Measured with a VIS-NIR optical fiber with a core diameter of 1000 μm and 0.5 NA.

Don´t you find what you are looking for?

LED light source

If you are looking for a fiber coupled LED or LED light source with another wavelength or other power requirements, even if it is not among our products, do not hesitate to contact us.

We will do our best to find a solution that suits your needs.

Fluorescent sensor for the detection of heavy metal ions

Application examples: Fiber coupled LED source

We show a fiber optic reflection configuration where the COB-365 UV source is used as excitation. It is a system employed for the detection of mercury ions in aqueous media by fluorescence.
