FJORD - SLED Light source

Fiber-coupled broadband NIR SLED light source

FJORD, SLED light source

Fiber-coupled broadband NIR SLED Light source

FJORD is the broadband SLED light source designed and engineered by Pyroistech to provide a customized response in the NIR to the most demanding user applications. A SLED is also called an SLD or super-luminescent diode and its operation is based on amplified spontaneous emission (ASE), also called superluminescence.

Features

Configurable spectral range (up to a maximum of 8 SLEDs to choose from in the table below).
Maximum optical power (8μm fiber): -5dBm *.
Low stabilization time <1 min.
Temperature control ± 0.1ºC.
Configurable output connector FC-PC / FC-APC.
Dimensions 18 x 5 x 12.7 cm*.
With quality materials and finishes.
Compact, light, silent.

* May vary depending on the chosen configuration.

Extras available

There is the possibility of combining up to a maximum of 8 modules to choose from among a wide variety of high-power SLEDs, also allowing the option of adding an additional module to control the power of each of the SLEDs independently. Its compact, silent and robust design allows it to be integrated into any type of application, covering a wide range of possibilities ranging from optical laboratories, testing of optical fibers, interrogation of Bragg networks, tomography, or sensors for the industry, among others.

At the forefront of innovation

SLED MODULES

We provide a custom response in the NIR for user applications

Reference

λ (nm)

Reference

HP780

λ (nm)

780

Reference

HP830

λ (nm)

830

Reference

HP930

λ (nm)

930

Reference

HP955

λ (nm)

955

Reference

HP1000

λ (nm)

1000

Reference

HP1030

λ (nm)

1030

Reference

HP1130

λ (nm)

1130

Reference

LP1180

λ (nm)

1180

Reference

λ (nm)

Reference

LP1190

λ (nm)

1190

Referencia

HP1240

λ (nm)

1240

Reference

LP1330

λ (nm)

1330

Reference

HP1440

λ (nm)

1440

Reference

LP1550

λ (nm)

1550

Reference

HP1550

λ (nm)

1550

Reference

MP1650

λ (nm)

1650

Reference

HP1650

λ (nm)

1650

FJORD configuration tool

FJORD TOOL

Get the desired spectrum for your source with the FJORD configuration tool. Choose up to 8 SLEDs and check the combined spectrum. Please provide your email to download the tool.

Most popular SLED light sources

In addition to offering custom FJORD sources, we also have SLED sources already configured with the most demanded spectra by our clients:

FJORD-X2-1330-1550

This SLED source covers the range between 1200nm and 1600nm using only 2 SLEDs.

Spectral power distribution:

+ See the datasheet

FJORD-X3-1330-1550-1650

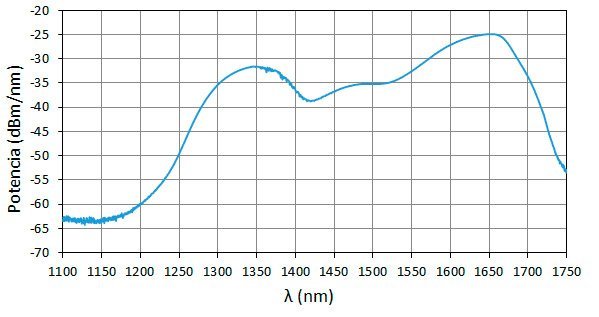

This SLED source covers the range between 1200nm and 1700nm using only 3 SLEDs.

Spectral power distribution:

+ See the datasheet

Application examples SLED light source

LPFG inscription monitoring

The interrogation of the LPFG is carried out using a wide spectrum FJORD source as excitation at the input of the fiber and measuring the optical power at the output by means of an optical spectrum analyzer. The latter makes it possible to measure the location of the resonance wavelength and the attenuation band.

Measure of ºBrix

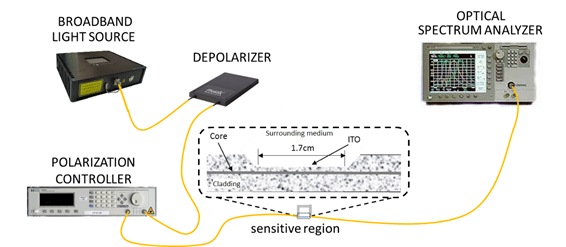

We show a setup with a broad spectrum FJORD source for the interrogation of a fiber optic refractometer that allows to measure ºBrix. The refractometer consists of a type D fiber optic with indium tin oxide (ITO) coating.

Some publications where our sources are employed

FJORD-X2-1330-1550

FJORD-X3-1330-1550-1650

Don´t you find what you are looking for?

SLED LIGHT source

If you are looking for a SLED source with another wavelength or other power requirements, even if it is not among our products, do not hesitate to contact us.

We will do our best to find a solution that suits your needs.
